(1)Ordering Code 产品名称
Y11 P 6.9 X 3.7 P2
Material Type Outside Diameter(A￠) Length(D) Shape
材质 形状 外径(A￠) 长度(D) 形体
(2)Suitable Material 适用材质
EIC.Y5E.Y8B.Y9.Y9D.Y11.F3B.F4D.C6.E1D...
(3)Shape 图形标示

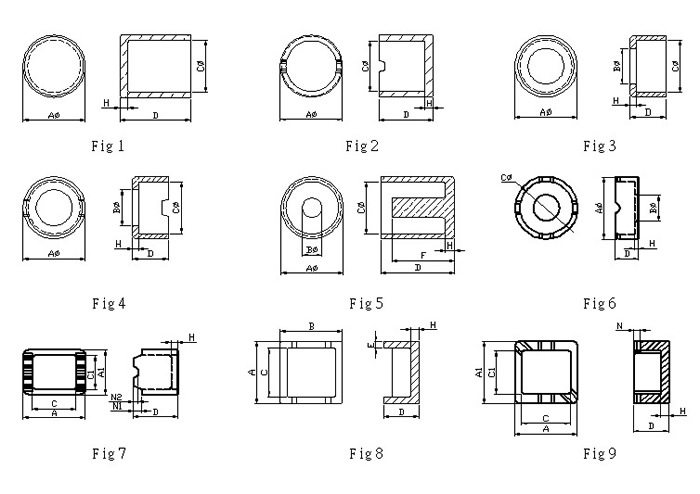

(4) DIMENSIONS (尺寸)
| NO. | CORE | Fig | A￠ | B￠ | C￠ | D | H | COMBINED WITH |
| 1 | P 4.35x2.2 P2 | 3 | 4.35±0.03 | 2.70±0.15 | 3.60±0.15 | 2.20±0.20 | 0.50±0.10 | |
| 2 | P 5.2x3.3 P2 | 3 | 5.20±0.03 | 3.00±0.10 | 4.50±0.15 | 3.30±0.20 | 0.70±0.10 | |
| 3 | P 5.2x3.3 P2 | 3 | 5.20±0.03 | 3.30±0.15 | 4.35±0.15 | 3.30±0.20 | 0.70±0.10 | |
| 4 | P 5.26x3 P2 | 3 | 5.26±0.03 | 3.20±0.15 | 4.15±0.15 | 3.00±0.20 | 0.70±0.10 | |
| 5 | P 5.5x4.8 P2 | 3 | 5.50±0.20 | 3.40±0.15 | 4.40±0.15 | 4.80±0.20 | 0.70±0.10 | |
| 6 | P 5.5x4.8 P2 | 3 | 5.50±0.20 | 3.70±0.15 | 4.40±0.15 | 4.80±0.20 | 0.70±0.10 | |
| 7 | P 5.9x2.7 P2 | 3 | 5.90±0.03 | 4.60±0.15 | 5.00±0.15 | 2.70±0.20 | 1.10±0.15 | |
| 8 | P 6.9x3.7 P2 | 3 | 6.90±0.03 | 4.10±0.15 | 5.60±0.15 | 3.70±0.20 | 0.50±0.10 | |
| 9 | P 6.9x6 P2 | 3 | 6.90±0.03 | 4.10±0.15 | 5.60±0.15 | 6.00±0.20 | 1.30±0.15 | |
| 10 | P 7x4.3 P2 | 3 | 7.00±0.03 | 4.15±0.15 | 5.75±0.15 | 4.30±0.20 | 1.00±0.15 | |
| 11 | P 9.85x6.6 P2 | 3 | 9.85±0.03 | 4.50±0.15 | 8.20±0.15 | 6.60±0.20 | 1.40±0.15 | |
| 12 | P 9.85x6.6 P2 | 3 | 9.85±0.03 | 4.50±0.15 | 8.50±0.15 | 6.60±0.20 | 1.40±0.15 | |
| 13 | P 3.71x2.1 | 8 | 3.71±0.10 | 2.90±0.10 | 2.10±0.10 | 0.40±0.10 | I 2.45x1.8x2(T) | |
| 14 | P 2.45x1.95x1.15 | 10 | 2.45±0.10 | 1.95±0.10 | 1.15±0.10 | 0.38±0.10 | I 1.52x1x1(T) | |
| 15 | P 4.4x2.1 | 2 | 4.40±0.15 | 3.50±0.15 | 2.10±0.15 | 0.35±0.10 | DR 3.3x2.1 | |
| 16 | P 4.6x2.1 | 1 | 4.60±0.15 | 3.40±0.15 | 2.10±0.15 | 0.50±0.10 | ||
| ... | ...... | ... | ...... | ...... | ...... | ...... | ...... | ...... |
