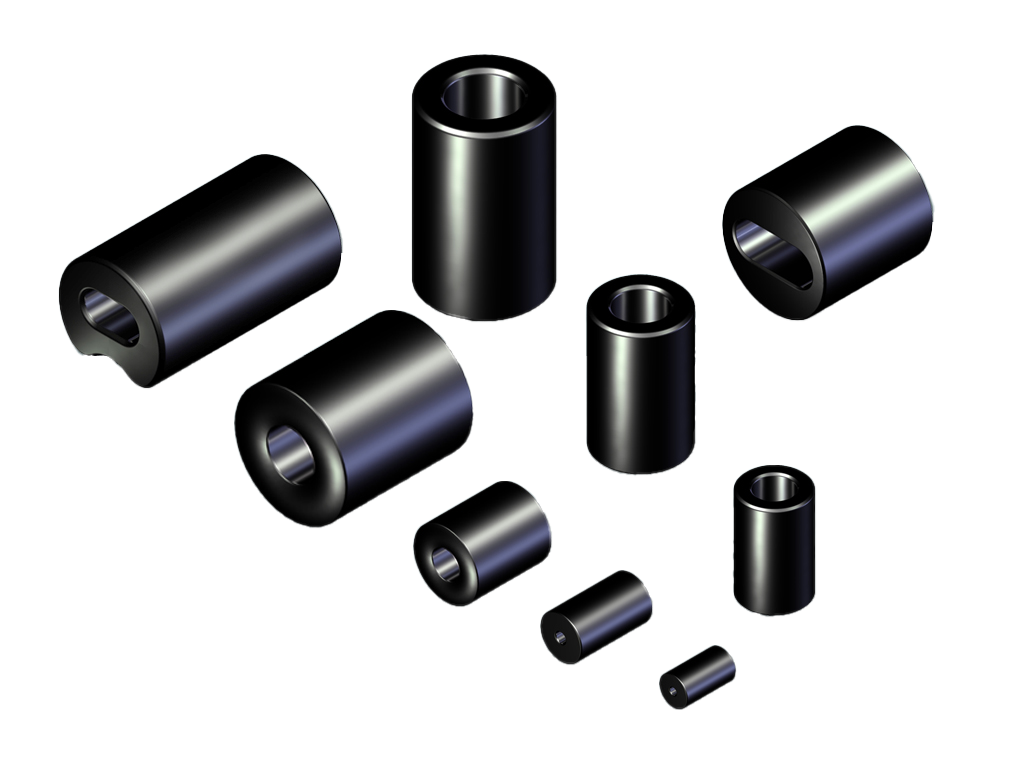

(1)Ordering Code 产品名称
C5A RH 14.2 X 6.35 X 6.35
Material Type OutsideDiameter(A)Inside Diameter(C￠) Length(D)
材质 形狀 外径(A￠) 內径(C￠) 长度(D)
(2)Suitable Material 适用材质
F4D.C5A.C5.C6.E1C.E2.E2D.E3.Y5E.Y8B.Y9.Y9D,Y11..

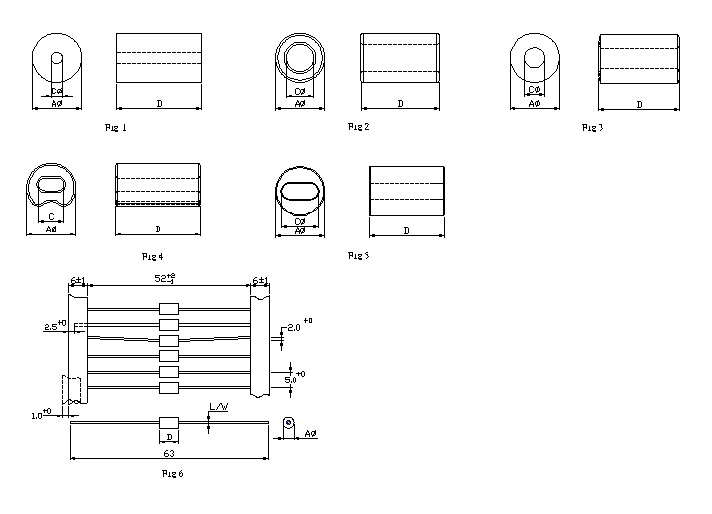

(3)Shape 图形标示
(4) DIMENSIONS (尺寸)
| NO. | CORE | Fig | A∮ | C∮ | D | E | F | G | P |
| 1 | RH 1.4x0.8x5 | 1 | 1.40±0.15 | 0.80±0.10 | 5.00±0.20 | ||||
| 2 | RH 1.5x0.9x5 | 1 | 1.50±0.15 | 0.90±0.10 | 5.00±0.20 | ||||
| 3 | RH 1.8x0.8x5 | 1 | 1.80±0.15 | 0.80±0.10 | 5.00±0.20 | ||||
| 4 | RH 2.5x0.7x4 | 1 | 2.50±0.20 | 0.70±0.10 | 4.00±0.20 | ||||
| 5 | RH 2.5x0.8x5 | 1 | 2.50±0.20 | 0.80±0.10 | 5.00±0.20 | ||||
| 6 | RH 2.5x1.0x6 | 1 | 2.50±0.20 | 1.00±0.10 | 6.00±0.20 | ||||
| 7 | RH 2.5x1.5x6 | 1 | 2.50±0.20 | 1.50±0.10 | 6.00±0.20 | ||||
| 8 | RH 3x1.0x7.0 | 1 | 3.00±0.10 | 1.00±0.10 | 7.00±0.20 | ||||
| 9 | RH 3x1.3x3 | 1 | 3.00±0.10 | 1.30±0.10 | 3.00±0.20 | ||||
| 10 | RH 3.5x0.8x4.7 | 1 | 3.50±0.20 | 0.80±0.10 | 4.70±0.20 | ||||
| 11 | RH 3.5x0.8x6 | 1 | 3.50±0.20 | 0.80±0.10 | 6.00±0.20 | ||||
| 12 | RH 3.5x0.8x9 | 1 | 3.50±0.20 | 0.80±0.10 | 9.00±0.20 | ||||
| 13 | RH 3.5x1.0x6 | 1 | 3.50±0.20 | 1.00±0.10 | 6.00±0.20 | ||||
| 14 | RH 3.5x1.15x10 | 1 | 3.50±0.20 | 1.15±0.10 | 10.0±0.30 | ||||
| 15 | RH 3.5x1.3x6 | 1 | 3.50±0.20 | 1.30±0.10 | 6.00±0.20 | ||||
| 16 | RH 3.5x1.3x12 | 1 | 3.50±0.20 | 1.30±0.10 | 12.0±0.30 | ||||
| ... | ...... | ... | ...... | ...... | ...... | ...... | ...... | ...... | ...... |
