(1)Ordering Code 产品名称
C5A RWW 2.8 X 8.1
Material Type OutsideDiameter(A￠) Length(D)
材质 形状 宽度(A￠) 长度(D)
C5A RWW 2.8 X 8.1 (S W)
Material Type OutsideDiameter(A￠) Length(D) Slot Coil Form
材质 形状 宽度(A￠) 長长度(D) 出线槽 接导针
(2)Suitable Material 适用材质
F4D.C5A.C5.C6.E1C.E2.E2D.E3.Y5E.Y8B.Y9.Y9D.Y11...

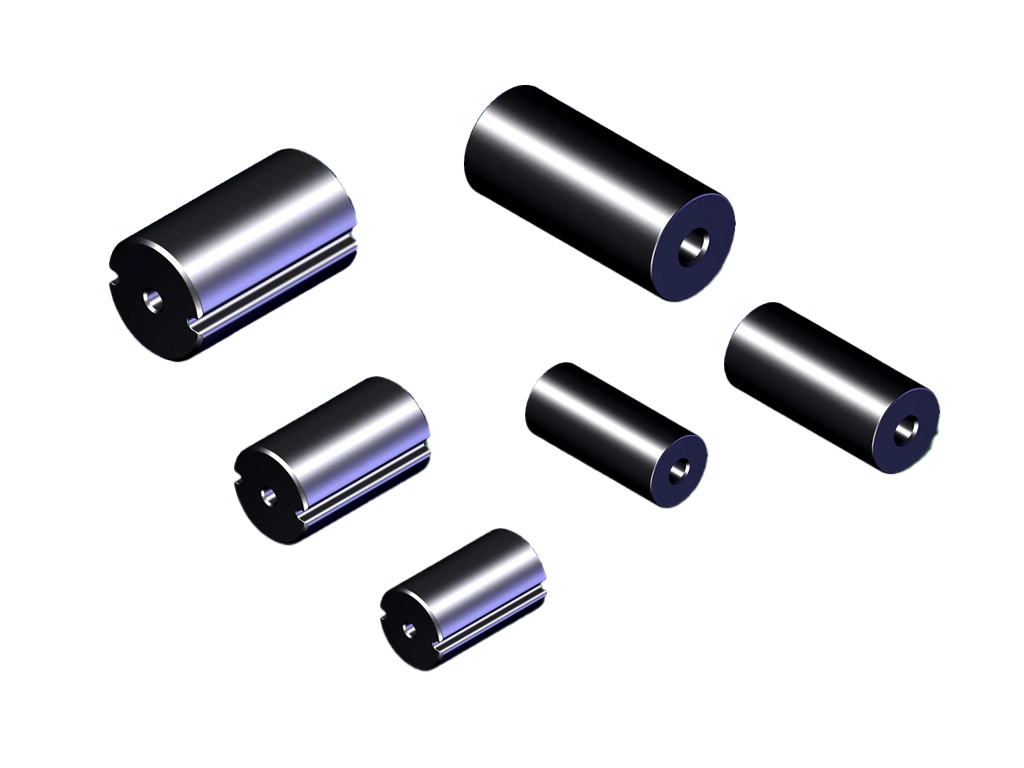

(3)Shape 图形標示

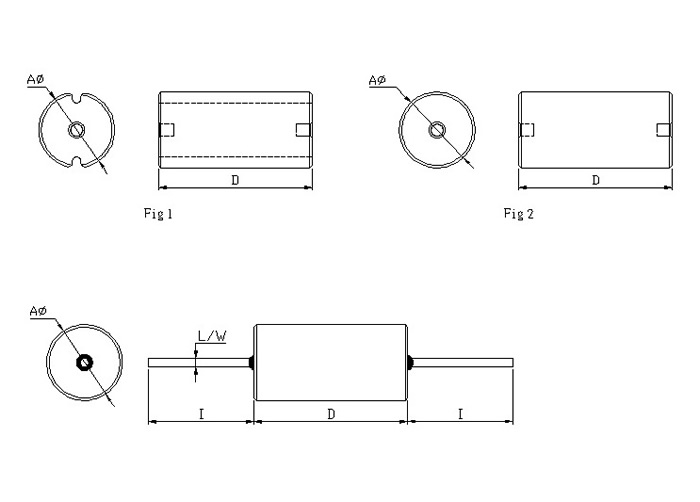

(4) DIMENSIONS (尺寸)
| NO. | CORE | Fig | A∮ | B∮ | D | E | F | G | P |
| 1 | RWW 2x10 | 2 | 2.00±0.10 | 10.0±0.30 | |||||
| 2 | RWW 2x14 | 2 | 2.00±0.10 | 14.0±0.30 | |||||
| 3 | RWW 2.3x8 | 2 | 2.30±0.20 | 8.00±0.20 | |||||
| 4 | RWW 3x6 | 2 | 3.00±0.20 | 6.00±0.20 | |||||
| 5 | RWW 3x8 | 2 | 3.00±0.20 | 8.00±0.20 | |||||
| 6 | RWW 3x10 | 2 | 3.00±0.20 | 10.0±0.20 | |||||
| 7 | RWW 3x10(S) | 1 | 3.00±0.10 | 10.0±0.30 | |||||
| 8 | RWW 3x12 | 2 | 3.00±0.10 | 12.0±0.30 | |||||
| 9 | RWW 3.5x25 | 2 | 3.50±0.10 | 25.0±0.50 | |||||
| 10 | RWW 4x10 | 2 | 4.00±0.20 | 10.0±0.30 | |||||
| 11 | RWW 4x15 | 2 | 4.00±0.20 | 15.0±0.20 | |||||
| 12 | RWW 4x20 | 2 | 4.00±0.20 | 20.0±0.40 | |||||
| 13 | RWW 5x15 | 2 | 5.00±0.20 | 15.0±0.30 | |||||
| 14 | RWW 5x20 | 2 | 5.00±0.20 | 20.0±0.30 | |||||
| 15 | RWW 5x25 | 2 | 5.00±0.20 | 25.0±0.30 | |||||
| 16 | RWW 6x20 | 2 | 6.00±0.20 | 20.0±0.40 | |||||
| ... | ...... | ... | ...... | ...... | ...... | ...... | ...... | ...... | ...... |
