(1)Ordering Code 產品名稱
C5A DR2W 16 X 18 (S H)
Material Type OutsideDiameter(A￠) Length(D) Slot Hole
材質 形狀 寬度(A￠) 長度(D) 出線槽 穿孔
(2)Suitable Material 適用材質
F4D.C5A.C5.C5C.C6.E1C.E2.Y8B.F4F.F5D.F6D...

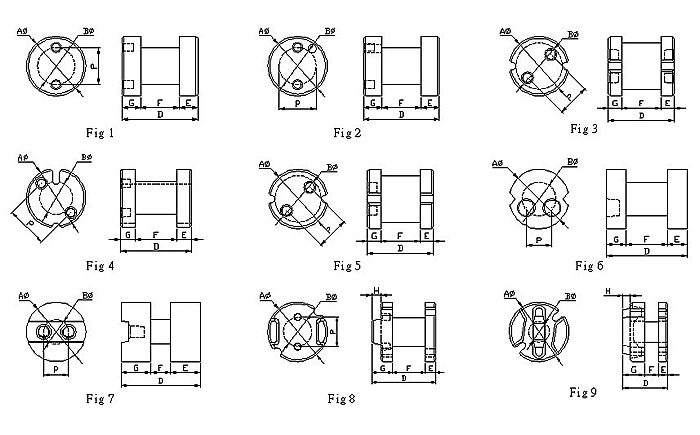

(3)Shape 图形標示
(4) DIMENSIONS (尺寸)
| NO. | CORE | Fig | A | B∮ | D | E | F | G | P |
| 1 | DR2W 3x4 | 1 | 3.00±0.10 | 1.50±0.10 | 4.00±0.10 | 1.25±0.15 | 1.50±0.15 | 1.45 | |
| 2 | DR2W 3x9.8 (S) | 2 | 3.00±0.10 | 1.70±0.10 | 9.80±0.30 | 1.40±0.15 | 7.00±0.15 | 1.30 | |
| 3 | DR2W 4x5.5 | 1 | 4.00±0.20 | 2.00±0.15 | 5.50±0.20 | 1.60±0.15 | 2.30±0.15 | 1.75/2.0 | |
| 4 | DR2W 4x5.5 (S) | 5 | 4.00±0.20 | 2.00±0.15 | 5.50±0.20 | 1.60±0.15 | 2.30±0.15 | 1.5/1.75/2.0 | |
| 5 | DR2W 4.2x6 (S) | 5 | 4.20±0.20 | 2.00±0.15 | 6.00±0.20 | 1.50±0.15 | 3.00±0.15 | 2.00 | |
| 6 | DR2W4.5x3.3(S)D41M | 10 | 4.50±0.20 | 1.80±0.15 | 3.30±0.20 | 0.50±0.10 | 1.50±0.15 | 2.50 | |
| 7 | DR2W 4.45x5.5(S) | 5 | 4.45±0.20 | 2.25±0.15 | 5.50±0.20 | 1.55±0.15 | 2.40±0.15 | 2.0/2.5 | |
| 8 | DR2W 4.5x7(S)RCH | 8 | 4.50±0.20 | 2.20±0.15 | 7.00±0.20 | 1.00±0.10 | 3.70±0.15 | 2.30±0.15 | 2.50 |
| 9 | DR2W 4.6x7(S)RCH | 8 | 4.60±0.20 | 2.30±0.15 | 7.00±0.20 | 0.80±0.10 | 4.00±0.15 | 2.20±0.15 | 2.50 |
| 10 | DR2W 5x7(S) | 5 | 5.00±0.20 | 2.00±0.15 | 7.00±0.20 | 2.00±0.15 | 3.00±0.15 | 2.0/2.5/3.0 | |
| 11 | DR2W 5x7 (S) | 1 | 5.00±0.20 | 2.00±0.15 | 7.00±0.20 | 2.00±0.15 | 3.00±0.15 | 2.50 | |
| 12 | D2W2 5x7 (S) | 3 | 5.00±0.20 | 2.00±0.15 | 7.00±0.20 | 2.00±0.15 | 3.00±0.15 | 2.50 | |
| 13 | DR2W 5x13 | 1 | 5.00±0.20 | 2.50±0.15 | 13.0±0.30 | 2.50±0.15 | 8.00±0.15 | 2.50 | |
| 14 | DR2W 5x5.5(S)RCH | 8 | 5.00±0.20 | 2.00±0.15 | 5.50±0.20 | 0.90±0.10 | 2.00±0.15 | 2.60±0.15 | 3.00 |
| 15 | DR2W 5.5x5(S) | 5 | 5.50±0.20 | 2.40±0.15 | 5.00±0.20 | 1.35±0.15 | 2.30±0.15 | 2.0/2.5 | |
| 16 | DR2W 5.8x6.3 (S) RCH | 8 | 5.80±0.20 | 2.40±0.15 | 6.30±0.20 | 0.80±0.10 | 3.30±0.15 | 2.20±0.15 | 3.0/4.0 |
| 17 | DR2W 5.8x4.5(S)RCH | 9 | 5.80±0.20 | 2.00±0.15 | 4.50±0.20 | 0.90±0.10 | 1.40±0.15 | 2.20±0.15 | 3.0 |
| ... | ...... | ... | ...... | ...... | ...... | ...... | ...... | ...... | ...... |
