(1)Ordering Code 产品名称
C5A R 1.65 X 14 (S
Material Type OutsideDiameter(A￠) Length(D) Slot
材质 形状 宽度(A￠) 长度(D) 出线槽
(2)Suitable Material 适用材质
F4D.C5A.C5.C6.E1C.E2.E2D.E3.Y5E.Y8B.Y9.Y9D.Y11...

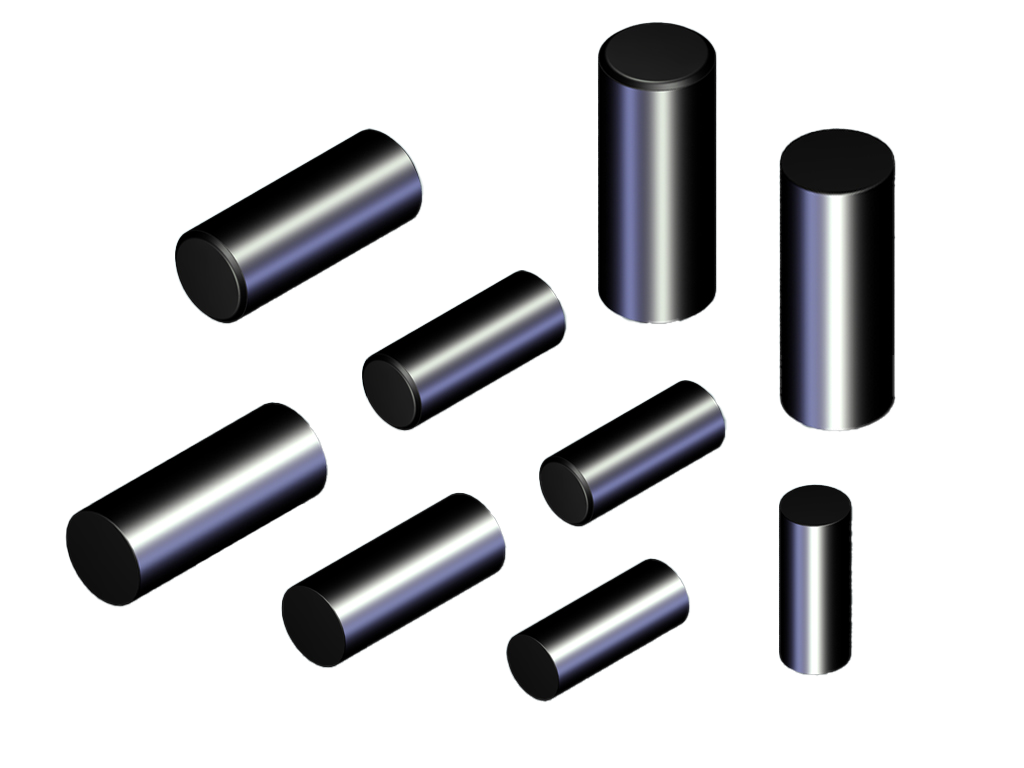

(3)Shape 图形标示
(4) DIMENSIONS (尺寸)
| NO. | CORE | Fig | A∮ | B∮ | D | E | F | G | P |
| 1 | R 1x2.65 | 1 | 1.00±0.10 | 2.65±0.15 | |||||
| 2 | R 1.2x4.5 | 1 | 1.20±0.10 | 4.50±0.20 | |||||
| 3 | R 1.5x5 | 1 | 1.50±0.10 | 5.00±0.20 | |||||
| 4 | R 1.65x14 | 1 | 1.65±0.10 | 14.0±0.30 | |||||
| 5 | R 1.85x7.7 | 1 | 1.85±0.10 | 7.70±0.20 | |||||
| 6 | R 1.9x6.5 | 1 | 1.90±0.10 | 6.50±0.20 | |||||
| 7 | R 2x7.7 | 1 | 2.00±0.10 | 7.70±0.30 | |||||
| 8 | R 2x14 | 1 | 2.00±0.10 | 14.0±0.30 | |||||
| 9 | R 2.26x2.15 | 1 | 2.26±0.10 | 2.15±0.20 | |||||
| 10 | R 2.6x20 | 1 | 2.60±0.10 | 20.0±0.40 | |||||
| 11 | R 3x10 | 2 | 3.00±0.10 | 10.0±0.20 | |||||
| 12 | R 3x12 | 2 | 3.00±0.10 | 12.0±0.30 | |||||
| 13 | R 3x15 | 2 | 3.00±0.10 | 15.0±0.30 | |||||
| 14 | R 3x25 | 2 | 3.00±0.10 | 25.0±0.50 | |||||
| 15 | R 3.3x17.5 | 2 | 3.30±0.10 | 17.5±0.30 | |||||
| 16 | R 3.5x20 | 2 | 3.50±0.10 | 20.0±0.40 | |||||
| ... | ...... | ... | ...... | ...... | ...... | ...... | ...... | ...... | ...... |
