(1)Ordering Code 产品名称
C5 RI 4.5 X 3.6 x 2.0
Material T ype Outside Diameter(A￠) Length(C￠) Length(D)
材质 形状 外径(A￠) 內径(C￠) 长度(D)
(2)Suitable Material 适用材质
C5.C6.F4D.F4F.F5D.F6D.F7D...
(3)APPLICATION 产品适用
For Communication devices.Notebook Computer.
PDA OA Machine,Digital Camera......
适用于通信器材、手提電脑、OA机器、数码相机、个人数位助理器

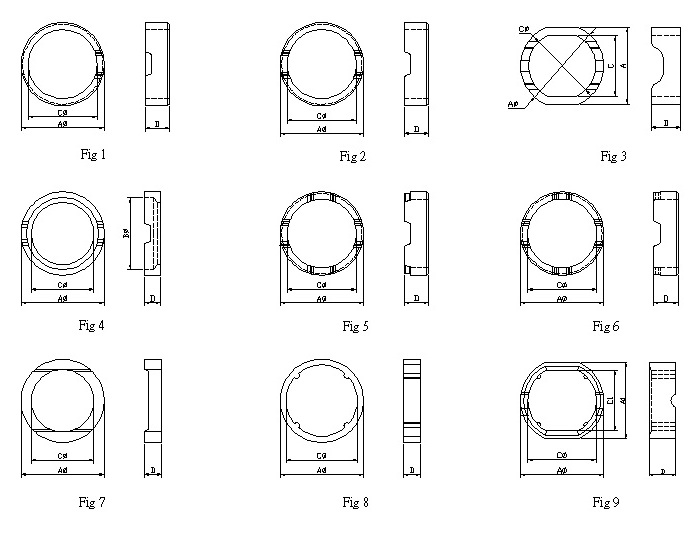

(4)Shape 图形标示
(5) DIMENSIONS (尺寸)
| NO. | CORE | Fig | A | B∮ | C∮ | D | COMBINED WITH |
| 1 | RI 3x2.4x1.0 | 2 | 3.00±0.15 | 2.40±0.10 | 1.00±0.10 | DR 3x1.3 D3 | |
| 2 | RI 3.1x2.5x1.1 | 2 | 3.10±0.15 | 2.50±0.10 | 1.10±0.10 | DR 2.2x1.1 | |
| 3 | RI 2.84x2.34x2.54 | 10 | 2.84±0.10 | 2.34±0.10 | 2.54±0.10 | DR 2.23x2.55(S) | |
| 4 | RI 3.25x2.58x2 | 1 | 3.25±0.15 | 2.58±0.10 | 2.00±0.15 | DR 2.5x1.9 | |
| 5 | RI 3.3x2.68x2.6 | 1 | 3.30±0.15 | 2.68±0.10 | 2.60±0.15 | DR 2.5x2.6 | |
| 6 | RI 3.4x2.6x2 | 2 | 3.40±0.15 | 2.60±0.10 | 2.00±0.10 | DR 2.5x2.1 DM | |
| 7 | RI 3.4x2.6x2.2 | 5 | 3.40±0.15 | 2.60±0.10 | 2.20±0.15 | DR 2.5x2.2 DM | |
| 8 | RI 3.4x2.8x2.4 | 5 | 3.40±0.15 | 2.80±0.10 | 2.40±0.15 | DR 2.7x2.1 DM | |
| 9 | RI 3.5x2.7x1.3 | 2 | 3.50±0.15 | 2.70±0.10 | 1.30±0.10 | DR 3.5x1.6 D3 | |
| 10 | RI 3.5x2.8x0.9 | 2 | 3.50±0.15 | 2.80±0.10 | 0.90±0.10 | DRT 3.5x1.3(S) D3 | |
| 11 | RI 3.9x3.1x0.7 | 2 | 3.90±0.15 | 3.10±0.10 | 0.70±0.10 | DR 2.7x0.9 | |
| 12 | RI 3.9x3.1x1.65 | 2 | 3.90±0.15 | 3.10±0.10 | 1.65±0.10 | DR 3.9x2.1 (S) D3 | |
| 13 | RI 4x3x0.9 | 2 | 4.00±0.15 | 3.00±0.10 | 0.90±0.10 | DR 4x1.2 D3 | |
| 14 | RI 4x3x1.6 | 2 | 4.00±0.15 | 3.00±0.10 | 1.60±0.15 | DR 4x2.2 D3 | |
| 15 | RI 4x3.4x2 | 2 | 4.00±0.15 | 3.40±0.10 | 2.00±0.15 | DR 3.25x2 | |
| 16 | RI 4.1x3.11x1.5 | 2 | 4.10±0.15 | 3.11±0.10 | 1.50±0.15 | DR 4.2x1.95(S) D3 | |
| 17 | RI 4.5x3.6x1.5 | 2 | 4.50±0.15 | 3.60±0.10 | 1.50±0.15 | DR 3.5x1.4 | |
| ... | ...... | ... | ...... | ...... | ...... | ...... | ...... |
