(1)Ordering Code 产品名称
F4D SMB 7.6 X 3.2 X 6 (T)
Material Type Outside Diameter(A¢) Length(D) Width(D) Plating
材质 形状 外径(A¢) 长度(D) 宽度 电镀
(2)Suitable Material 适用材质
F4D.F4F.F5D.F6D.F7D

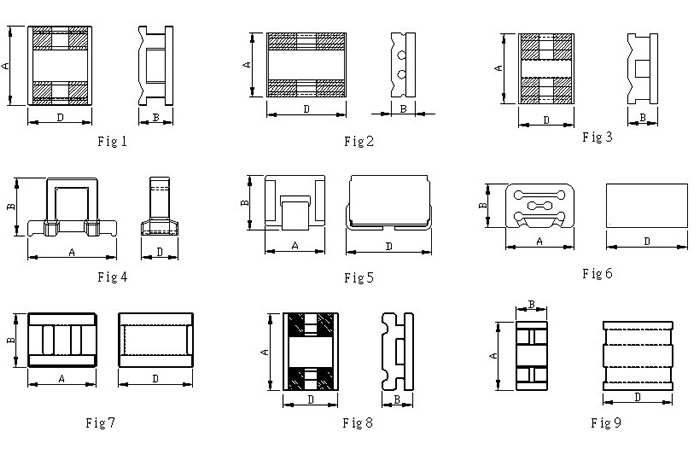

(3)Shape 图形标示
(4) DIMENSIONS (尺寸)
NO. | CORE | Fig | A | B | C∮ | D | E | F |
1 | SMB 3x2.5x4 | 5 | 3.00±0.20 | 2.50±0.20 | 4.00±0.20 | |||
2 | SMB 3.2x2.5x3.5 | 7 | 3.20±0.15 | 2.50±0.15 | 3.50±0.15 | |||
3 | SMB 4.65x1.7x5.75 | 2 | 4.65±0.20 | 1.70±0.20 | 5.75±0.20 | |||
4 | SMB 4.5x1.8x3.2 | 8 | 4.50±0.15 | 1.80±0.15 | 3.20±0.15 | |||
5 | SMB 4.5x2.5x3.7 | 7 | 4.50±0.15 | 2.50±0.15 | 3.70±0.15 | |||
6 | SMB 5.8x2.6x7.65 | 9 | 5.80±0.15 | 2.60±0.15 | 7.65±0.15 | |||
7 | SMB 5.8x2.6x7.65 | 10 | 5.80±0.15 | 2.60±0.10 | 7.65±0.15 | |||
8 | SMB 5x5x8.5 | 3 | 5.00±0.20 | 5.00±0.20 | 8.50±0.30 | |||
9 | SMB 5.8x6.9x3 | 11 | 5.80±0.15 | 6.90±0.20 | 3.00±0.15 | |||
10 | SMB 5.8x2.6x4.5 | 10 | 5.80±0.15 | 2.60±0.15 | 4.50±0.15 | |||
11 | SMB 5.8x2.6x4.5 | 9 | 5.80±0.15 | 2.60±0.15 | 4.50±0.15 | |||
12 | SMB 6.5x4.1x9.9 | 6 | 6.50±0.20 | 4.10±0.20 | 9.90±0.30 | |||
13 | SMB 6.6x2.4x5.0 | 10 | 6.60±0.15 | 2.40±0.15 | 5.00±0.15 | |||
14 | SMB 6.6x2.45x5.2 | 10 | 6.60±0.15 | 2.45±0.15 | 5.20±0.15 | |||
15 | SMB 7.5x5x8.8 | 1 | 7.50±0.20 | 5.00±0.20 | 8.80±0.20 | |||
16 | SMB 7.6x3.2x6 | 3 | 7.60±0.20 | 3.20±0.20 | 7.60±0.20 | C1=1.8 | C2=1.5 | |
17 | SMB 7.6x3.2x6 | 3 | 7.60±0.20 | 3.20±0.20 | 7.60±0.20 | |||
... | ...... | ... | ...... | ...... | ...... | ...... | ...... |
