(1)Ordering Code 产品名称
C5A T 22.5 X 13.8 X 13.3
Material Type Outside Diameter(A￠)Inside Diameter(C￠) Length(D)
材质 形状 宽度(A￠) 內径(C￠) 长度(D)
(2)Suitable Material 适用材质
F4D.C5A.C5.C6.E2F...

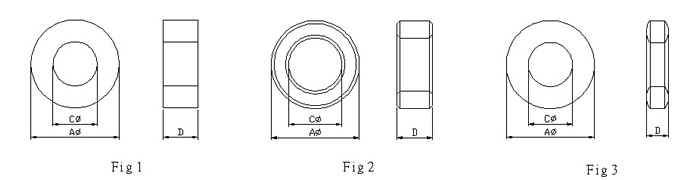

(3)Shape 图形标示
(4) DIMENSIONS (尺寸)
| NO. | CORE | Fig | A∮ | C∮ | D | |
| 1 | T 2.54x1.27x0.8 | 1 | 2.54±0.20 | 1.27±0.20 | 0.80±0.20 | |
| 2 | T 2.54x1.27x1.27 | 1 | 2.54±0.20 | 1.27±0.20 | 1.27±0.20 | |
| 3 | T 3x1.65x1.15 | 1 | 3.00±0.20 | 1.65±0.20 | 1.15±0.20 | |
| 4 | T 4x2x1.5 | 1 | 4.00±0.20 | 2.00±0.20 | 1.50±0.20 | |
| 5 | T 4x2.2x1.5 | 1 | 4.00±0.20 | 2.20±0.20 | 1.50±0.20 | |
| 6 | T 4.4x2.2x0.75 | 1 | 4.40±0.20 | 2.20±0.20 | 0.75±0.20 | |
| 7 | T 4.4x2.8x2.5 | 1 | 4.40±0.20 | 2.80±0.20 | 2.50±0.20 | |
| 8 | T 4.4x2.8x1.5 | 3 | 4.40±0.20 | 2.80±0.20 | 1.50±0.20 | |
| 9 | T 4.5x1.8x1.4 | 1 | 4.50±0.20 | 1.80±0.20 | 1.40±0.20 | |
| 10 | T 4.5x3x1.5 | 1 | 4.50±0.20 | 3.00±0.20 | 1.50±0.20 | |
| 11 | T 4.8x2.8x1.5 | 1 | 4.80±0.20 | 2.80±0.20 | 1.50±0.20 | |
| 12 | T 4.8x2.8x1.5 | 3 | 4.80±0.20 | 2.80±0.20 | 1.50±0.20 | |
| 13 | T 5x3x2 | 2 | 5.00±0.20 | 3.00±0.20 | 2.00±0.20 | |
| 14 | T 5.7x3x2 | 2 | 5.70±0.20 | 3.00±0.20 | 2.00±0.20 | |
| 15 | T 6x3x3 | 1 | 6.00±0.20 | 3.00±0.20 | 3.00±0.20 | |
| 16 | T 6x3x2 | 1 | 6.00±0.20 | 3.00±0.20 | 2.00±0.20 | |
| ... | ...... | ... | ...... | ...... | ...... | |
