(1)Ordering Code 产品名称
C6 RID 7.5 X 10.3 X 13.3 H1.4
Material Type Width(A) Thickness(D) Length(D) Hole(C￠)
材质 形状 宽度(A) 宽度(D) 长度(D) 內孔(c￠)
(2)Suitable Material 适用材质
F4D.C5A.C5.C6...

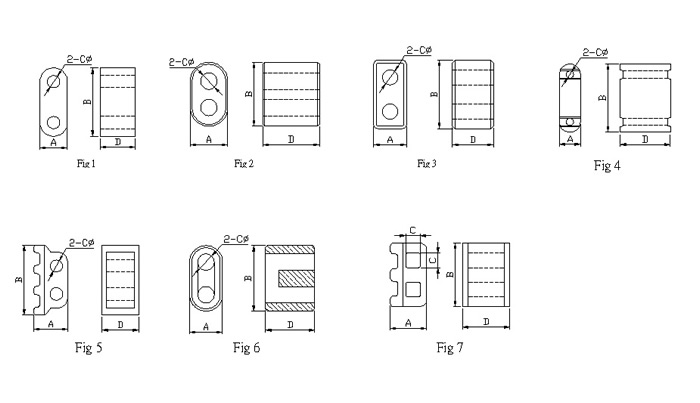

(3)Shape 图形标示
(4) DIMENSIONS (尺寸)
| NO. | CORE | Fig | A∮ | B | C∮ | D | |
| 1 | RID 1.3x2x3.2 H0.7 | 3 | 1.30±0.20 | 3.20±0.20 | 0.70±0.10 | 2.00±0.20 | |
| 2 | RID 1.5x2x3.5 H0.9 | 1 | 1.50±0.20 | 3.50±0.20 | 0.90±0.10 | 2.00±0.20 | |
| 3 | RID 2x1.5x3.5 H0.9 | 1 | 2.00±0.20 | 3.50±0.20 | 0.90±0.10 | 1.50±0.20 | |
| 4 | RID 2x2.6x3.5-M H0.8 | 7 | 2.00±0.20 | 3.50±0.20 | 0.80±0.10 | 2.60±0.20 | |
| 5 | RID 2x2.8x5 H1.1 | 2 | 2.00±0.20 | 5.00±0.20 | 1.10±0.15 | 2.80±0.20 | |
| 6 | RID 2x3x4.8 H 1.1 | 1 | 2.00±0.30 | 4.80±0.20 | 1.10±0.15 | 3.00±0.20 | |
| 7 | RID 2.3x3x4.8 H1.0 | 3 | 2.30±0.20 | 4.80±0.20 | 1.00±0.15 | 3.00±0.20 | |
| 8 | RID 2.3x5x7.5 H0.8 | 4 | 2.30±0.20 | 7.50±0.20 | 0.80±0.10 | 5.00±0.20 | |
| 9 | RID 2.4x2.6x5-M H0.9 | 5 | 2.40±0.20 | 5.00±0.10 | 0.90±0.10 | 2.60±0.20 | |
| 10 | RID 2.4x3x5 H1.1 | 3 | 2.40±0.20 | 5.00±0.20 | 1.10±0.15 | 3.00±0.20 | |
| 11 | RID 2.4x3x5 H1.2 | 3 | 2.40±0.20 | 5.00±0.20 | 1.10±0.15 | 3.00±0.20 | |
| 12 | RID 2.6x2x5.1 H1.4 | 2 | 2.60±0.20 | 5.10±0.20 | 1.40±0.10 | 2.00±0.20 | |
| 13 | RID 2.6x2x5.3 H1.2 | 1 | 2.60±0.20 | 5.30±0.20 | 1.20±0.10 | 2.00±0.20 | |
| 14 | RID 3x3x6.4 H1.0 | 1 | 3.00±0.20 | 6.40±0.20 | 1.00±0.15 | 3.00±0.20 | |
| 15 | RID 3x5x6 H1.2 | 1 | 3.00±0.20 | 6.00±0.20 | 1.20±0.15 | 3.00±0.20 | |
| 16 | RID 3x3.5x6 H1.5 | 1 | 3.00±0.20 | 6.00±0.20 | 1.50±0.15 | 3.50±0.20 | |
| ... | ...... | ... | ...... | ...... | ...... | ||
