(1)Ordering Code 产品名称
E1C THP 6.5 X 5.7 PS2 0C3 P0.6
Material Type Outside Diameter(A￠) Length(D) Shape Thread Type Thread Poch
材质 形状 外径(A￠) 长度(D) 形体 螺纹角度 螺纹间距
(2)Suitable Material 适用材质
Y8P.Y9P.F8.F4D.F5D.E1P.C5.C6......

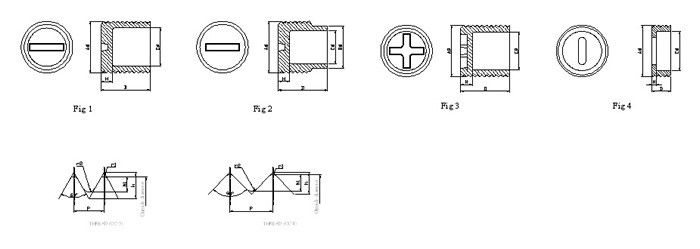

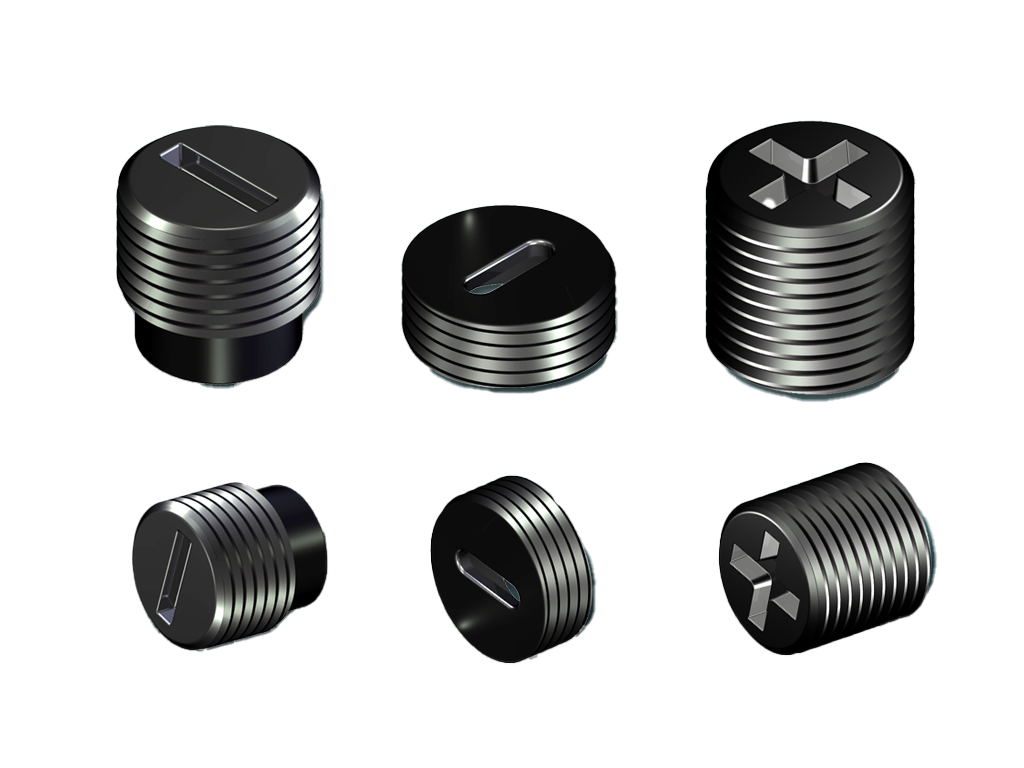

(3)Shape 图形标示
(4) DIMENSIONS (尺寸)
| NO. | CORE | Fig | A￠ | B￠ | C￠ | D | H | F |
| 1 | THP 3.86x1.25 PS4 C8 | 4 | 3.86±0.03 | 2.90±0.10 | 1.25±0.15 | 0.40±0.10 | ||
| 2 | THP 4.13x1.3 PS4 C8 | 4 | 4.13±0.03 | 2.90±0.10 | 1.30±0.10 | 0.40±0.10 | ||
| 3 | THP 4.3x2 PS4 | 1 | 4.30±0.03 | 3.20±0.15 | 2.00±0.20 | 0.90±0.10 | ||
| 4 | THP 4.3x2.5 PS4 C8 | 4 | 4.30±0.03 | 3.10±0.15 | 2.50±0.20 | 0.50±0.10 | ||
| 5 | THP 4.6x1.7 PS4 C8 | 4 | 4.60±0.03 | 3.50±0.15 | 1.70±0.20 | 0.65±0.20 | ||
| 6 | THP 4.65x2.5 PS4 | 1 | 4.65±0.03 | 3.50±0.15 | 2.50±0.20 | 0.65±0.15 | ||
| 7 | THP 4.75x2.5 PS4 | 1 | 4.75±0.03 | 3.50±0.15 | 2.50±0.20 | 0.65±0.10 | ||
| 8 | THP 4.75x2.5 PS4 C7Z | 3 | 4.75±0.03 | 3.70±0.15 | 2.50±0.20 | 0.65±0.10 | ||
| 9 | THP 4.8x2.8 PS4 | 1 | 4.80±0.03 | 3.50±0.15 | 2.80±0.20 | 0.65±0.10 | ||
| 10 | THP 5x3 PS4 | 1 | 5.00±0.03 | 3.70±0.15 | 3.00±0.20 | 1.00±0.10 | ||
| 11 | THP 5x3 PS4 | 1 | 5.00±0.03 | 4.00±0.15 | 3.00±0.20 | 1.00±0.15 | ||
| 12 | THP 5x3 PS4 C7Z | 3 | 5.00±0.03 | 4.00±0.15 | 3.00±0.20 | 1.00±0.15 | 5.00±0.20 | |
| 13 | THP 5.85x5.1 PS2 | 2 | 5.80±0.03 | 5.30±0.20 | 4.20±0.15 | 5.10±0.20 | 1.40±0.15 | 3.40±0.30 |
| 14 | THP 5.95x2.7 PS4 | 1 | 5.95±0.03 | 4.60±0.15 | 2.70±0.20 | 1.00±0.15 | 5.00±0.20 | |
| 15 | THP 6.55x5.4 PS4 | 1 | 6.55±0.03 | 5.00±0.15 | 5.40±0.20 | 1.50±0.15 | ||
| 16 | THP 6.55x5.7 PS4 C7Z | 3 | 6.55±0.03 | 3.00±0.20 | 5.00±0.15 | 5.70±0.20 | 1.50±0.15 | |
| ... | ...... | ... | ...... | ...... | ...... | ...... | ...... | ...... |
