(1)Ordering Code 产品名称
Y9D TH 2.6 X 2.4 S14 0C3 P0.35
Material Type Outside Diameter(A$) Length(D) Shape Thread Type Thread Poch
材质 形状 外径(A￠) 长度(D) 形体 螺纹角度 螺纹间距
(2)Suitable Material 适用材质
EIC.Y5E.Y8B.Y9.Y9D.Y11...
(3)Shape 图形标示

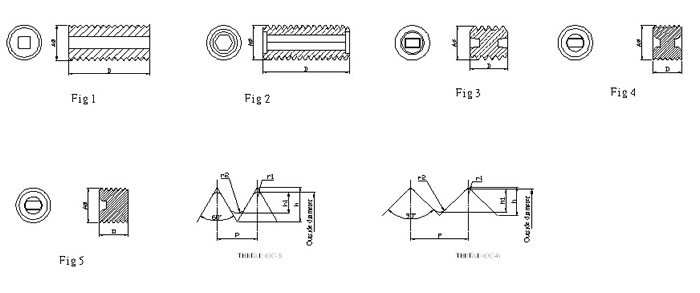

(4) DIMENSIONS (尺寸)
| NO. | CORE | Fig | A￠ | D | |||
| 1 | TH 2x2 S14 | 5 | 2.00±0.03 | 2.00±0.15 | |||
| 2 | TH 2.16x3 S14 | 4 | 2.16±0.03 | 3.00±0.20 | |||
| 3 | TH 2.17x1.7 S14 | 5 | 2.17±0.03 | 1.70±0.15 | |||
| 4 | TH 2.2x2.5 STD | 3 | 2.20±0.03 | 2.50±0.20 | |||
| 5 | TH 2.2x2.5 S14 | 4 | 2.20±0.03 | 2.50±0.20 | |||
| 6 | TH 2.35x1.5 S14 | 5 | 2.35±0.03 | 1.50±0.15 | |||
| 7 | TH 2.55x2.5 STD | 3 | 2.55±0.03 | 2.50±0.20 | |||
