(1)Ordering Code 产品称
C5A FP 19 X 6.5 X 13.3
Material Type Length(A) Width(B) Thickness(D)
材质 形状 长度(A) 宽度(B) 高度(D)
C5A PL 38.1 X 25.4 X 6.35
Material Type Length(A) Width(B) Thickness(D)
材质 形状 长度(A) 宽度(B) 高度(D)
(2)Suitable Material 适用材质
F4D.C5A.C5.C6.E2F...

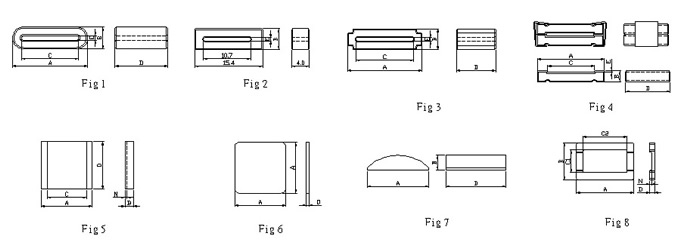

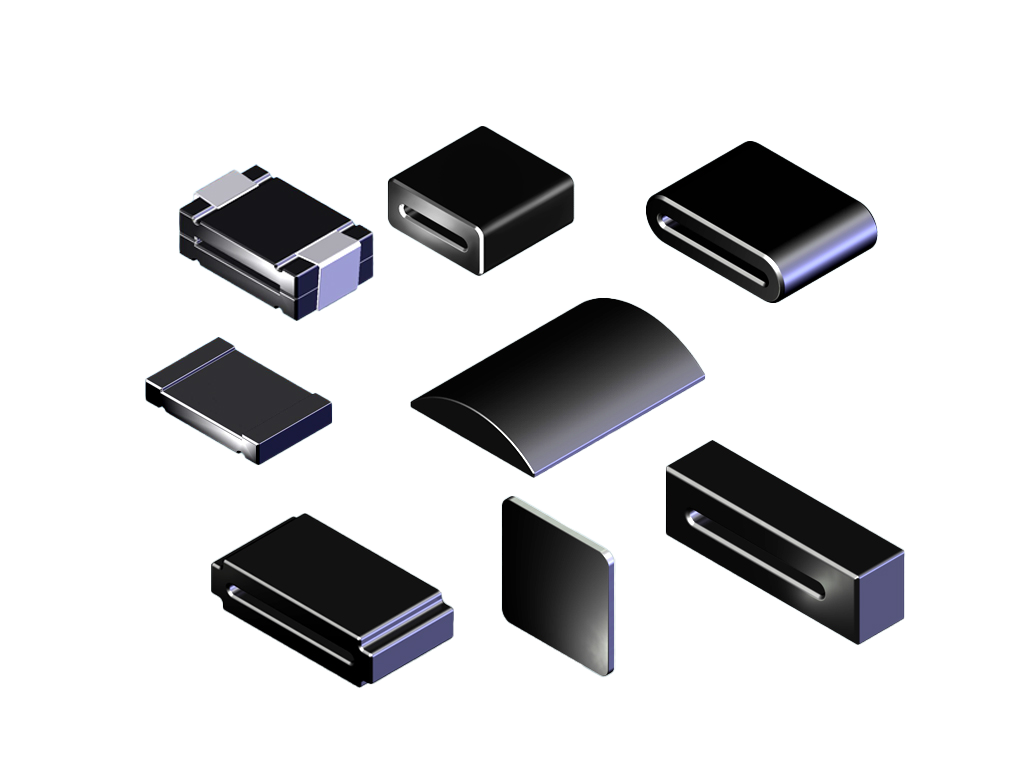

(3)Shape 图形标示
(4) DIMENSIONS (尺寸)
| NO. | CORE | Fig | A | B | C | D | E |
| 1 | FP 13.7x5.3x18 | 2 | 13.7±0.40 | 5.30±0.30 | 9.20±0.0.30 | 18.0±0.40 | 0.80±0.20 |
| 2 | FP 13.7x7.7x12.3 | 1 | 13.7±0.40 | 7.70±0.40 | 10.0±0.30 | 12.3±0.40 | 4.25±0.30 |
| 3 | FP 15x6.5x12 | 1 | 15.0±0.40 | 6.50±0.30 | 10.0±0.30 | 12.0±0.40 | 1.50±0.30 |
| 4 | FP 16x5x12 | 1 | 16.0±0.40 | 5.00+0/-0.7 | 11.5±0.50 | 12.0±0.50 | 0.80±0.30 |
| 5 | FP 16x5x12 | 1 | 16.0±0.40 | 5.00±0.20 | 11.5±0.50 | 12.0±0.50 | 1.20±0.20 |
| 6 | FP 17x5x12 | 1 | 17.0±0.40 | 5.00±0.30 | 11.5±0.50 | 12.0±0.40 | 0.80±0.20 |
| 7 | FP 17x5x12 | 1 | 17.0±0.40 | 5.00±0.30 | 11.5±0.50 | 12.0±0.40 | 1.00±0.20 |
| 8 | FP 18x5x8 | 1 | 18.0±0.40 | 5.00±0.30 | 14.0±0.40 | 8.00±0.30 | 1.00±0.20 |
| 9 | FP 19x6.5x12 | 1 | 19.0±0.50 | 6.50±0.30 | 13.8±0.50 | 12.0±0.40 | 1.50±0.30 |
| 10 | ...... | ...... | ...... | ...... | ...... | ...... | ...... |
| 11 | PL 12.8x2.1x12 | 5 | 12.8±0.40 | 2.10±0.15 | 9.90±0.20 | 12.0±0.30 | 0.50±0.10 |
| 12 | PL 14x3.4x19.4 | 7 | 14.0±0.40 | 3.40±0.30 | 19.4±0.60 | ||
| 13 | PL 27x27x2 | 6 | 27.0±1.00 | 27.0±1.00 | 2.00±0.40 | ||
| 14 | PL 36x36x2.2 | 6 | 36.0MIN | 36.0MIN | 2.20±0.40 | ||
| 15 | PL 38x38x2 | 6 | 38.0±1.00 | 38.0±1.00 | 2.00±0.40 | ||
| 16 | PL 38.1x25.4x6.35 | 4 | 38.1±1.00 | 6.35±0.25 | 26.6±0.70 | 25.4±0.70 | 1.70±0.20 |
| ... | ...... | ... | ...... | ...... | ...... | ...... | ...... |
